Mesh Length 200m Mesh Height 96 Inches Fixed Knot Deer Fence Mesh Machine
Fixed Knot Deer Fence Mesh Machine Introduction:
Fixed knot deer fence mesh machine is also named as deer fence machine or animal fence machine which can produce fixed knot fence which is widely used for preventing environmental balance,preventing landslide and used as livestock fence.
Our machine adopts sophisticated computer control,advance manufacturing technique.It have the featurers of novelty,high degree of automation, reliaility and operational safety, long life and easy operation.
Fixed Knot Deer Fence Mesh Machine Features:
1. High efficiency, running speed of 30-40 times/min, daily production of 3-5 tons,
2. Stable, the equipment is controlled by servo motor, and the control system is Panasonic PLC, which ensures the stability and reliability of operation.
3. Simple, the equipment adopts modern mechanical design concept, the main mechanical functions adopt module design method, precision assembly, high integration, in order to achieve convenient maintenance, simplify the operation steps of equipment maintenance and inspection.
4. Energy-saving, with high capacity, energy consumption per 25KW capacity of a ton, high yield can bring you high profit, high market competitiveness.
5 Specifications can be adjusted, in the width range of your customized equipment network specifications can be adjusted at will, diameter hole * 75mm small, weft hole * 75mm small.
Fixed Knot Deer Fence Mesh Machine Technical Parameters:
| Model | DX-LWJ-1600 | DX-LWJ-2000 | DX-LWJ-2440 | DX-LWJ-3600 |
| Mesh width | Max.1600mm | Max. 2000mm | Max. 2440mm | Max. 3600mm |
| Line wire number | 12 PCS | 17 PCS | 21 PCS | 35 PCS |
| Line wire space | Min 75mm adjust | Min75mm adjust | Min 75mm adjust | Min 75mm adjust |
| Cross wrie space | 75mm-450mm | 75mm-450mm | 75mm-450mm | 75mm-450mm |
| Line wire diameter | 2.0-3.8mm | 2.0-3.8mm | 2.0-3.8mm | 2.0-3.8mm |
| Cross wire diameter | 2.0-3.8mm | 2.0-3.8mm | 2.0-3.8mm | 2.0-3.8mm |
| Fixed knot wire diameter | 1.8-2.5mm | 1.8-2.5mm | 1.8-2.5mm | 1.8-2.5mm |
| Edge wire diameter | 2.5-3.0mm | 2.5-3.0mm | 2.5-3.0mm | 2.5-3.0mm |
| Production speed | 25-30 times / min | 25-30 times / min | 25-30 times / min | 25-30 times / min |
| Max.mesh length | 200m | 200m | 200m | 200m |
| Power system | servo motor | servo motor | servo motor | servo motor |
| Control system | PLC | PLC | PLC | PLC |
Fixed Knot Deer Fence Mesh Machine Application:
Deer fence mesh can also be used for the isolation and protection of precious flowers, forests and planting areas. In Europe and America, deer nets are used to protect ecological balance and prevent landslides
Fixed Knot Deer Fence Mesh Machine Packing:

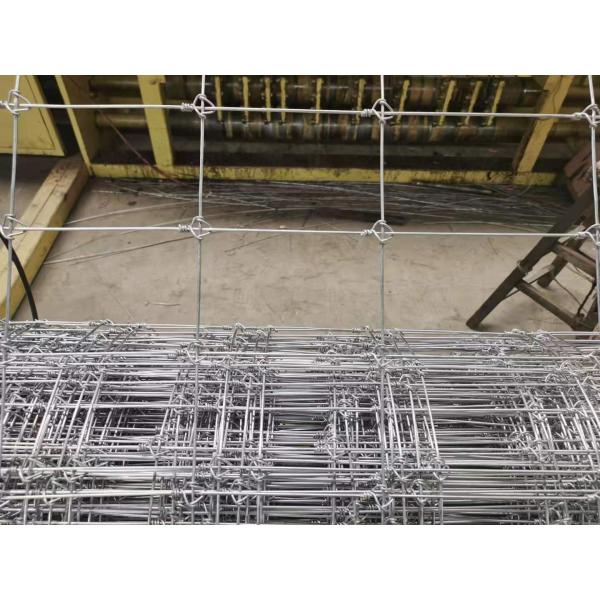

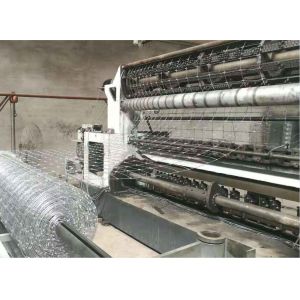

Fixed Knot Deer Fence Mesh Machine Photos:
