PLC Punch Pressure 40 Tons BTO-22 BTO-28 Blade Barbed Wire Making Machine
Blade Barbed Wire Making Machine Introduction:
Blade Barbed Wire Making Machine is mainly divided into punch machine part and coiling machine part.
First, the punch machine part is mainly composed of the decoiler, punch machine, slitting frame. razor coiling machine, control cabinet, coiling machine, wire spool, wire strip spool.The tonnage of the punch machine press depends on the width of the galvanized coil. It is a special production blade barbed wire machine, by feeder machine, punching machine, material-collecting, package silk into a unit. The blade barbed wire making machine is compact and small in size. Easy to operate, easy to maintain and low energy.Suitable for the production of various styles of razor wire.
Blade Barbed Wire Making Machine Features:
1. Punching machine part:It use for cut the steel strip, and make steel strip into razor blade,machine can produce different shapes and sizes strip by changing mold.
2. Forming machine part: It is used for warp steel wire into razor blade then wind up razor blade wire in coil. Press:25Tons,40Tons,63Tons. Razor types:BTO-10, BTO-12,BTO-18,BTO-22,BTO-30,BTO-28,BTO-30,CBT-60,CBT-65. Strips No: 7strips,9strips,11strips. Operator: 2-3 persons.
3. PLC and Touch screen control, easy to operate.
4. Production speed can be changed by frequency inverter, long life and high productivity.
5. Material feeding with step motor, more accurate.
6. Mold adopts special material, long life and more accurate.
7. Fit for various razor barbed wires production.
Blade Barbed Wire Making Machine Technical Parameters:
| Model | 25T | 40T | Coiling Machine |
| Voltage | 380V/50HZ or as your request |
| Power | 2.2kw | 2.2kw | 1.5kw |
| Producing Speed | 220-280m/h | 220-280m/h | 80kg/h |
| Pressure | 25T | 25T/40T | |
| Weight | 1500KG | 2200KG | 300KG |
| Thickness of Sheet | 0.5±0.05(mm) | 0.5±0.05(mm) | |
| Diameter of Wire | 2.5mm | 2.5mm | 2.5mm |
| Dimension(mm) | 1200*1000*1900 | 1100*1000*2000 | 100*750*1200 |
| Raw material | Hot dipped galvanized steel sheet; Stainless steel sheet,etc. |
Mould type for you to choose
| Style | Barb length | Barb width | Barb space |
| BTO-10 | 10±1 mm | 13±1mm | 26±1mm |
| BTO-12-1 | 12±1mm | 13±1mm | 26±1mm |
| BTO-12-2 | 12±1mm | 15±1mm | 26±1mm |
| BTO-18 | 18±1mm | 15±1mm | 33±1mm |
| BTO-22 | 22±1mm | 15±1mm | 48±1mm |
| BTO-28 | 28±1mm | 15±1mm | 49±1mm |
| BTO-30 | 30±1mm | 18±1mm | 49±1mm |
| CBT-60 | 60±1mm | 32±1mm | 96±1mm |
| CBT-65 | 65±1mm | 21±1mm | 100±1mm |
Blade Barbed Wire Making Machine Applications:
Blade barbed wire is widely used in military places, prisons, government agencies, banks, and residential walls, private houses, villa walls, doors and Windows, highways, railway guardrail and border protection and security.

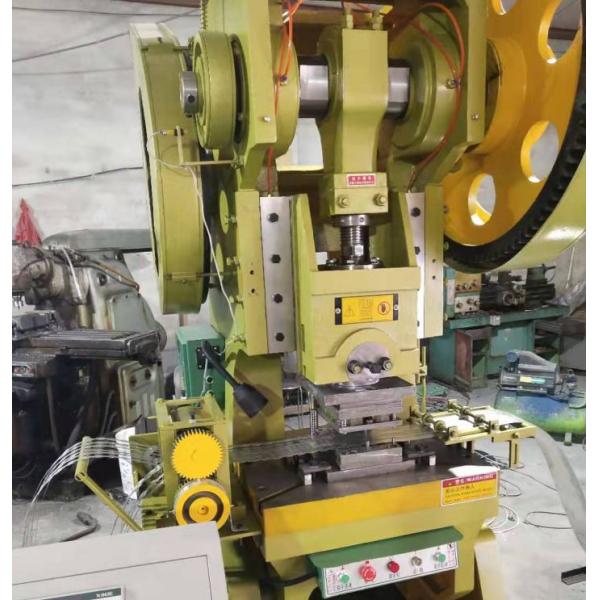

Blade Barbed Wire Making Machine Photos:
